Technical Specifications
Infineon BSB104N08NP3GXUSA1 technical specifications.
General
| Continuous Drain Current (ID) | 50A |
| Drain to Source Voltage (Vdss) | 80V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 2.1nF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 80V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 42W |
| Mount | Surface Mount |
| Rds On Max | 10.4mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSB104N08NP3GXUSA1 Datasheet
Download the complete datasheet for Infineon BSB104N08NP3GXUSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

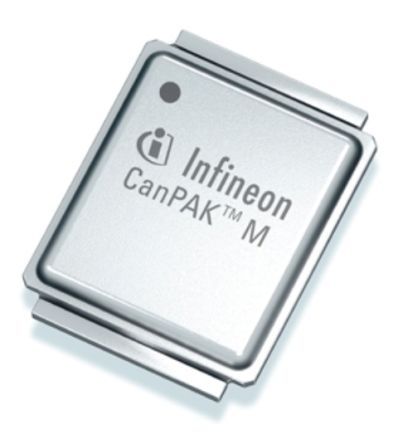

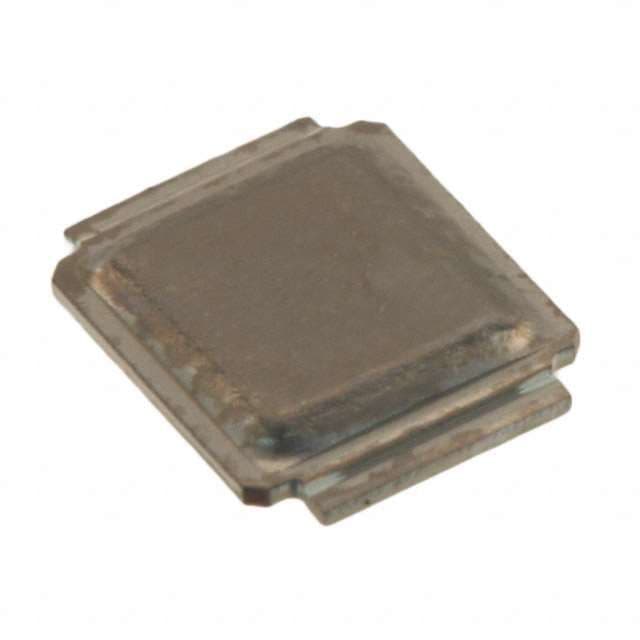

Product Images
