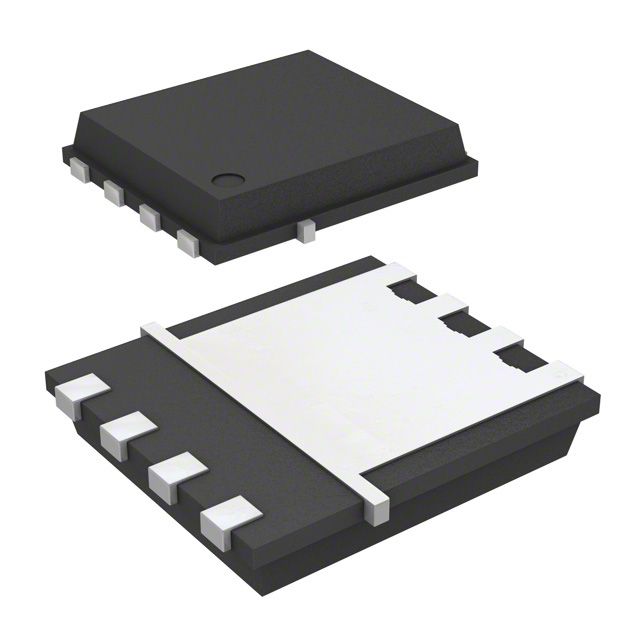

P-channel MOSFET featuring 30V drain-source voltage and 8mΩ Rds(on) for efficient power switching. This silicon, metal-oxide semiconductor FET offers a continuous drain current of 30A and a maximum power dissipation of 89W. Designed for surface mounting with tin contact plating, it operates across a wide temperature range from -55°C to 150°C. The component is RoHS compliant and packaged in cut tape.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSC080P03LSGAUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BSC080P03LSGAUMA1 technical specifications.
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 30A |
| Drain to Source Voltage (Vdss) | -30V |
| Gate to Source Voltage (Vgs) | 25V |
| Halogen Free | Halogen Free |
| Input Capacitance | 6.14nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | -30V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 89W |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Rds On Max | 8mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| RoHS | Compliant |
