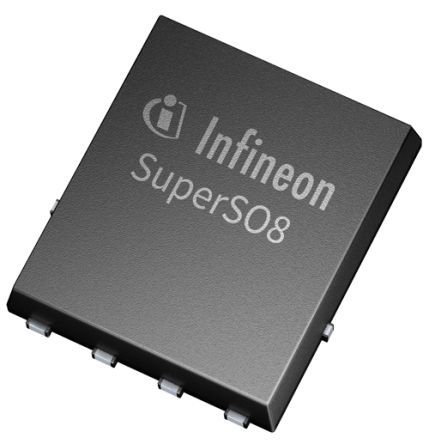

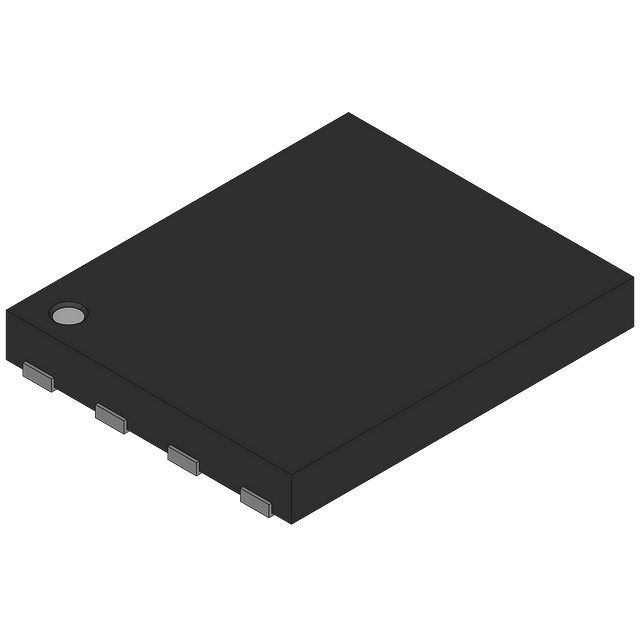

The BSC0906NS is a high-power MOSFET from Infineon with a maximum operating temperature range of -55°C to 150°C. It has a continuous drain current of 63A and a gate to source voltage of 20V. The device is packaged in a SOIC package and is compliant with RoHS and Reach SVHC regulations. It features a maximum power dissipation of 30W and a maximum Rds on of 4.5mΩ.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSC0906NS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BSC0906NS technical specifications.
| Package/Case | SOIC |
| Continuous Drain Current (ID) | 63A |
| Fall Time | 3ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 870pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 30W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rds On Max | 4.5mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 17ns |
| Turn-On Delay Time | 4.7ns |
| RoHS | Compliant |
Download the complete datasheet for Infineon BSC0906NS to view detailed technical specifications.
