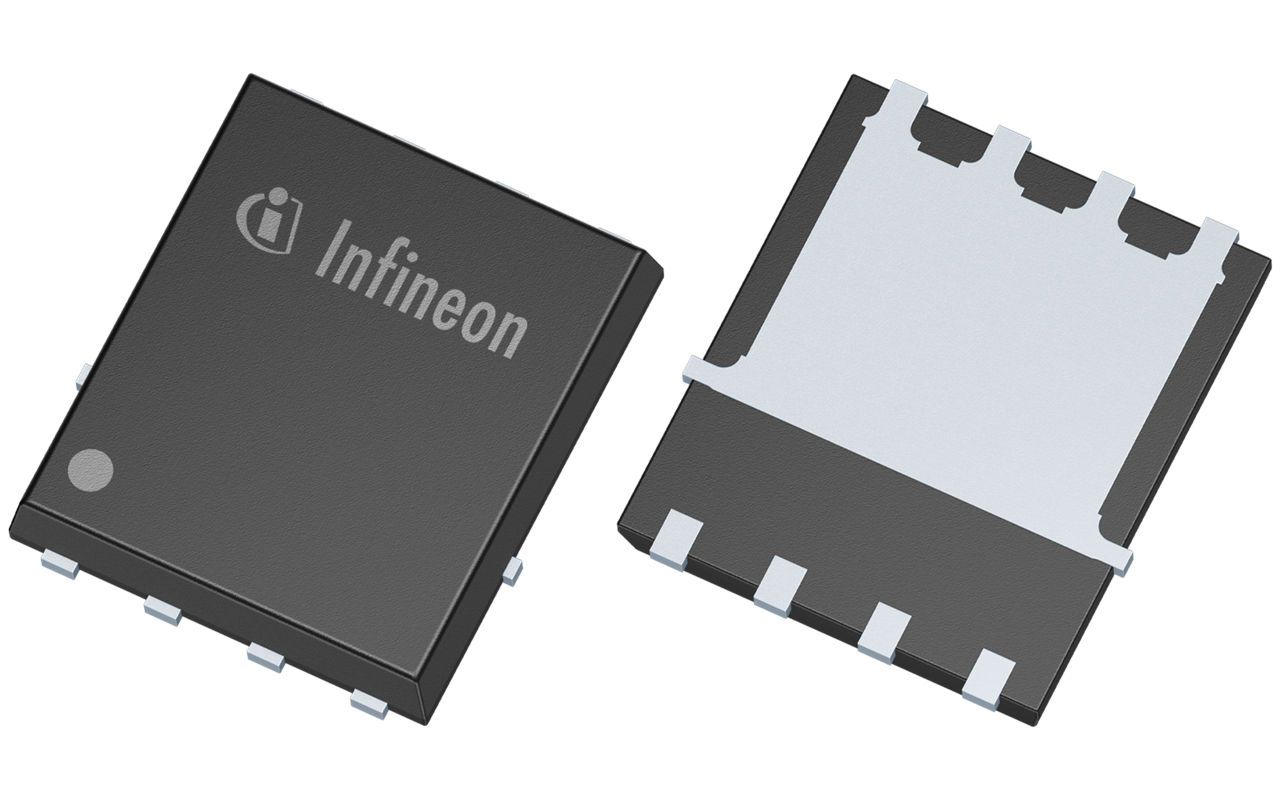

N-channel Power MOSFET, 80V drain-source voltage, 7A continuous drain current, and 34mOhm drain-source resistance at 10V. Features OptiMOS process technology, single quad drain triple source configuration, and a TDSON EP package. This surface-mount component offers 8 pins with a 1.27mm pitch, 5.15mm length, 5.9mm width, and 1mm height. Operates from -55°C to 150°C with a maximum power dissipation of 2500mW.
PackageTDSON EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BSC340N08NS3 G technical specifications.
General
| Basic Package Type | Non-Lead-Frame SMT |
| Package Family Name | SON |
| Package/Case | TDSON EP |
| Lead Shape | No Lead |
| Pin Count | 8 |
| PCB | 8 |
| Package Length (mm) | 5.15 |
| Package Width (mm) | 5.9 |
| Package Height (mm) | 1 |
| Seated Plane Height (mm) | 1 |
| Pin Pitch (mm) | 1.27 |
| Package Material | Plastic |
| Mounting | Surface Mount |
| Configuration | Single Quad Drain Triple Source |
| Category | Power MOSFET |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Process Technology | OptiMOS |
| Maximum Drain Source Voltage | 80V |
| Maximum Gate Source Voltage | ±20V |
| Maximum Continuous Drain Current | 7A |
| Maximum Drain Source Resistance | 34@10VmOhm |
| Typical Gate Charge @ Vgs | 6.8@10VnC |
| Typical Gate Charge @ 10V | 6.8nC |
| Typical Input Capacitance @ Vds | 564@40VpF |
| Maximum Power Dissipation | 2500mW |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 150°C |
Compliance
| Cage Code | CG091 |
| EU RoHS | Yes with Exemption |
| HTS Code | 8541290095 |
| Schedule B | 8541290080 |
| ECCN | EAR99 |
| Automotive | Yes |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
