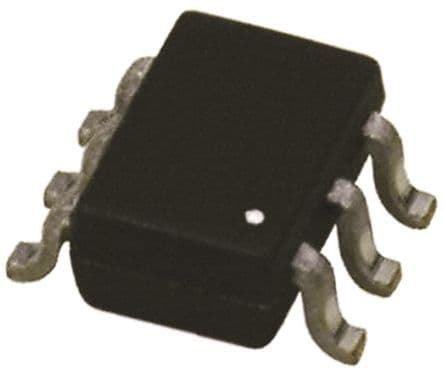

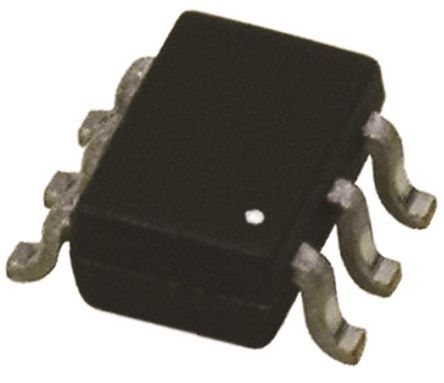

The Infineon BSD235CH6327XTSA1 is a N and P-Channel Junction Field-Effect Transistor (JFET) packaged in a SOT-363 surface mount package. It has a maximum operating temperature range of -55°C to 150°C and a maximum power dissipation of 500mW. The device is halogen free and lead free, and is compliant with RoHS regulations. The JFET has a maximum drain to source voltage of -20V and a continuous drain current of 530mA. The on-state resistance is 350mR, and the input capacitance is 47pF.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSD235CH6327XTSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BSD235CH6327XTSA1 technical specifications.
| Package/Case | SOT-363 |
| Continuous Drain Current (ID) | 530mA |
| Drain to Source Resistance | 266mR |
| Drain to Source Voltage (Vdss) | -20V |
| FET Type | N and P-Channel |
| Gate to Source Voltage (Vgs) | 12V |
| Halogen Free | Halogen Free |
| Input Capacitance | 47pF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | -20V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| On-State Resistance | 350mR |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Power Dissipation | 500mW |
| Rds On Max | 350mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| RoHS | Compliant |
