Infineon BSD314SPEH6327XTSA1 technical specifications.

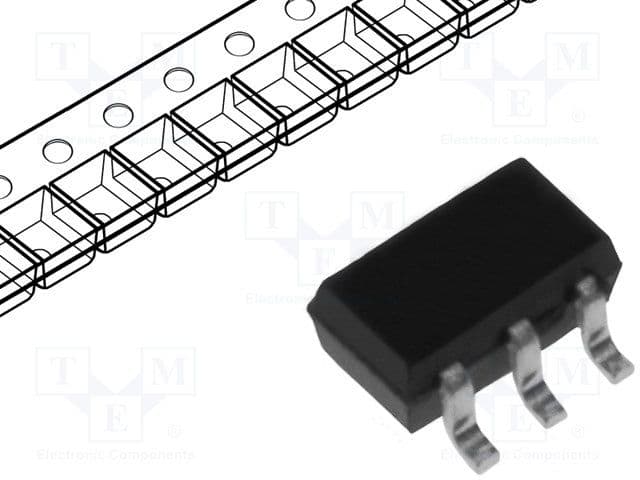

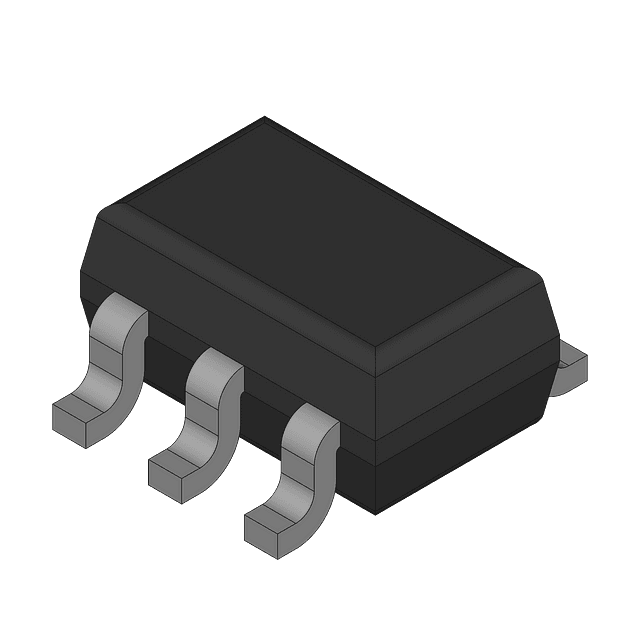

| Package/Case | SOT-363 |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 1.5A |
| Drain to Source Voltage (Vdss) | -30V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 0.8mm |
| Input Capacitance | 294pF |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Dual Supply Voltage | -30V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Rds On Max | 140mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 12.4ns |
| Turn-On Delay Time | 5.1ns |
| Width | 1.25mm |
| RoHS | Compliant |
