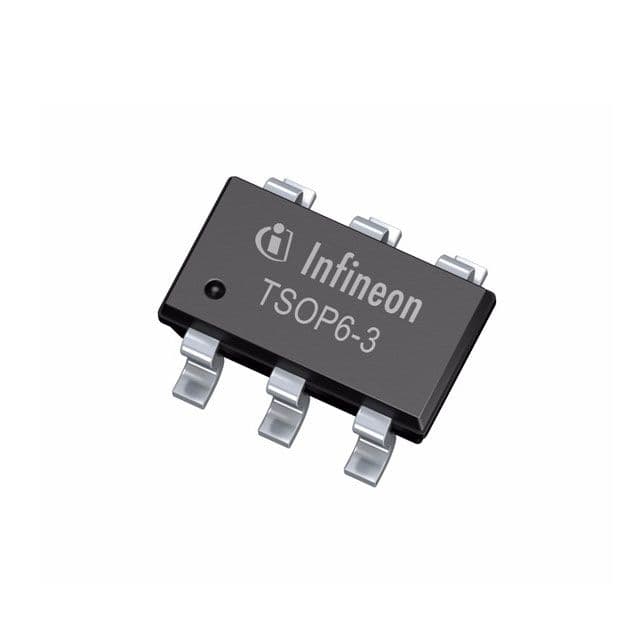

The BSL306NL6327HTSA1 is a 2 N-Channel MOSFET from Infineon with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum power dissipation of 500mW and is packaged in a SOT-23-6 case for surface mount applications. The device has a continuous drain current of 2.3A and a drain to source voltage of 30V. It also features an input capacitance of 275pF and a maximum Rds on resistance of 57mΩ.
Checking distributor stock and pricing after the page loads.
Infineon BSL306NL6327HTSA1 technical specifications.
| Package/Case | SOT-23-6 |
| Continuous Drain Current (ID) | 2.3A |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 1.4ns |
| FET Type | 2 N-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 275pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rds On Max | 57mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 8.3ns |
| Turn-On Delay Time | 4.4ns |
| RoHS | Compliant |
