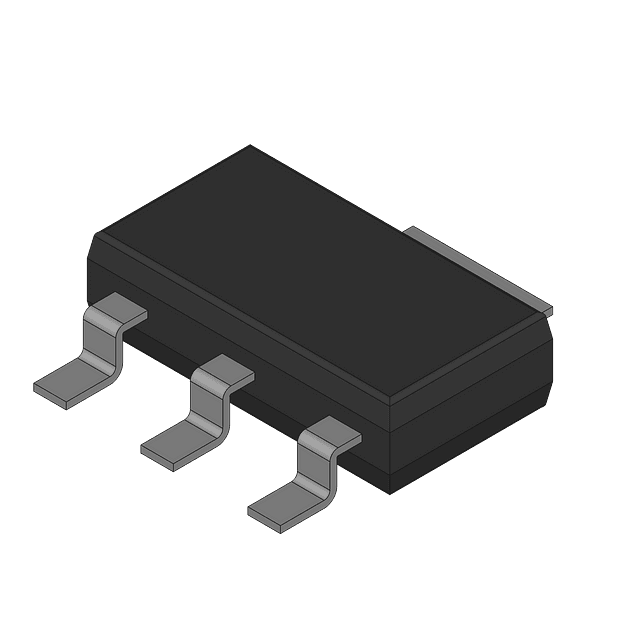

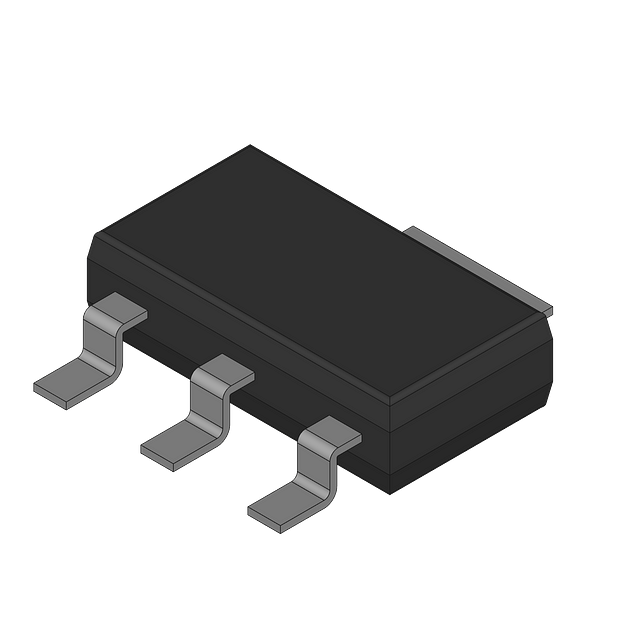

The BSP125L6433HTMA1 is a SIPMOS MOSFET from Infineon with a maximum drain to source voltage of 600V and continuous drain current of 120mA. It features a fall time of 110ns and a maximum power dissipation of 1.8W. The device is packaged in a SOT-223-4 and is designed for surface mount applications. It operates over a temperature range of -55°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSP125L6433HTMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BSP125L6433HTMA1 technical specifications.
| Package/Case | SOT-223-4 |
| Continuous Drain Current (ID) | 120mA |
| Drain to Source Voltage (Vdss) | 600V |
| Fall Time | 110ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 150pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.8W |
| Radiation Hardening | No |
| Rds On Max | 45R |
| RoHS Compliant | No |
| Series | SIPMOS® |
| Turn-Off Delay Time | 20ns |
| Turn-On Delay Time | 7.7ns |
| RoHS | Not CompliantNo |
