P-channel, silicon, surface-mount JFET with a 60V drain-to-source breakdown voltage and 1.9A continuous drain current. Features a 300mΩ on-state resistance and a 1.5V threshold voltage. Operates across a -55°C to 150°C temperature range with a 1.8W maximum power dissipation. Packaged in a SOT-223 plastic package, this halogen-free and lead-free component is supplied on tape and reel.
PackageSOT-223
Voltage60V
Current19A
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BSP171PH6327XTSA1 technical specifications.
General
Package/Case
SOT-223
Contact Plating
Tin
Continuous Drain Current (ID)
1.9A
Current
19A
Drain to Source Breakdown Voltage
60V
Drain to Source Resistance
300mR
Drain to Source Voltage (Vdss)
-60V
Fall Time
87ns
Gate to Source Voltage (Vgs)
20V
Halogen Free
Halogen Free
Height
1.6mm
Input Capacitance
460pF
Lead Free
Lead Free
Length
6.5mm
Max Dual Supply Voltage
-60V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.8W
Mount
Surface Mount
Nominal Vgs
1.5V
On-State Resistance
300mR
Package Quantity
1000
Packaging
Tape and Reel
Polarity
P-CHANNEL
Power Dissipation
1.8W
Rds On Max
300mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIPMOS®
Termination
SMD/SMT
Threshold Voltage
1.5V
Turn-Off Delay Time
208ns
Voltage
60V
Width
6.7mm
Compliance
RoHS
Compliant
Datasheet
Infineon BSP171PH6327XTSA1 Datasheet
Download the complete datasheet for Infineon BSP171PH6327XTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

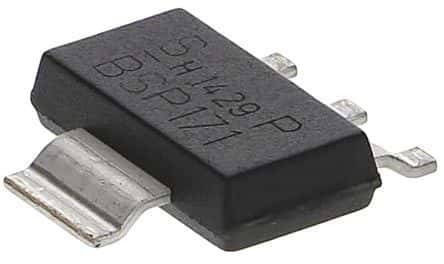

Product Images
