Technical Specifications
Infineon BSP295L6327HTSA1 technical specifications.
General
| Package/Case | SOT-223 |
| Continuous Drain Current (ID) | 1.8A |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 19ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 368pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.8W |
| Radiation Hardening | No |
| Rds On Max | 300mR |
| RoHS Compliant | Yes |
| Series | SIPMOS® |
| Turn-Off Delay Time | 27ns |
| Turn-On Delay Time | 5.4ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSP295L6327HTSA1 Datasheet
Download the complete datasheet for Infineon BSP295L6327HTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

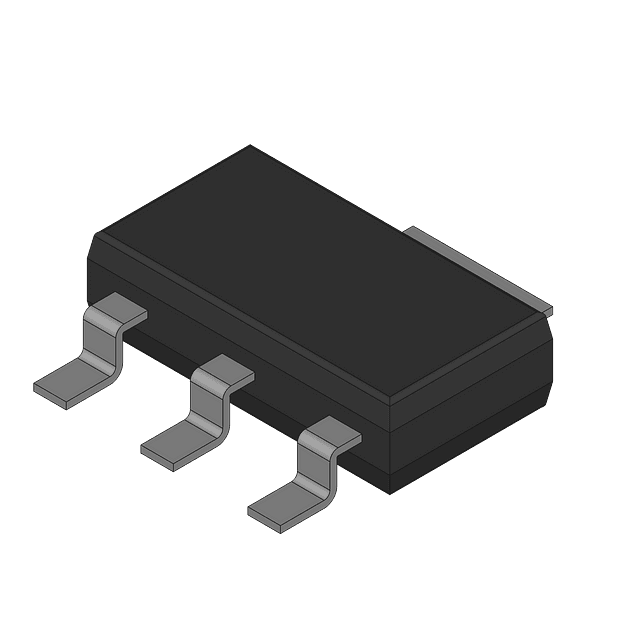

Product Images
