N-channel logic-level MOSFET in SOT-223 package, featuring 100V drain-source voltage and 1A continuous drain current. Offers a low Rds(on) of 700mR at a nominal gate-source voltage of 1.4V. Designed for surface-mount applications with a maximum power dissipation of 1.8W and operating temperature range of -55°C to 150°C. Includes a turn-on delay time of 5.2ns and turn-off delay time of 37.4ns.
PackageSOT-223
Power1.5W
Quick Jump:
Technical Specifications
Infineon BSP296 technical specifications.
General
| Package/Case | SOT-223 |
| Continuous Drain Current (ID) | 1A |
| Drain to Source Voltage (Vdss) | 100V |
| Dual Supply Voltage | 100V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Not Halogen Free |
| Height | 1.6mm |
| Input Capacitance | 291pF |
| Length | 6.5mm |
| Max Dual Supply Voltage | 100V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8W |
| Nominal Vgs | 1.4V |
| Packaging | Tape and Reel |
| Power Dissipation | 1.5W |
| Rds On Max | 700mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Threshold Voltage | 1.4V |
| Turn-Off Delay Time | 37.4ns |
| Turn-On Delay Time | 5.2ns |
| Width | 6.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSP296 Datasheet
Download the complete datasheet for Infineon BSP296 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

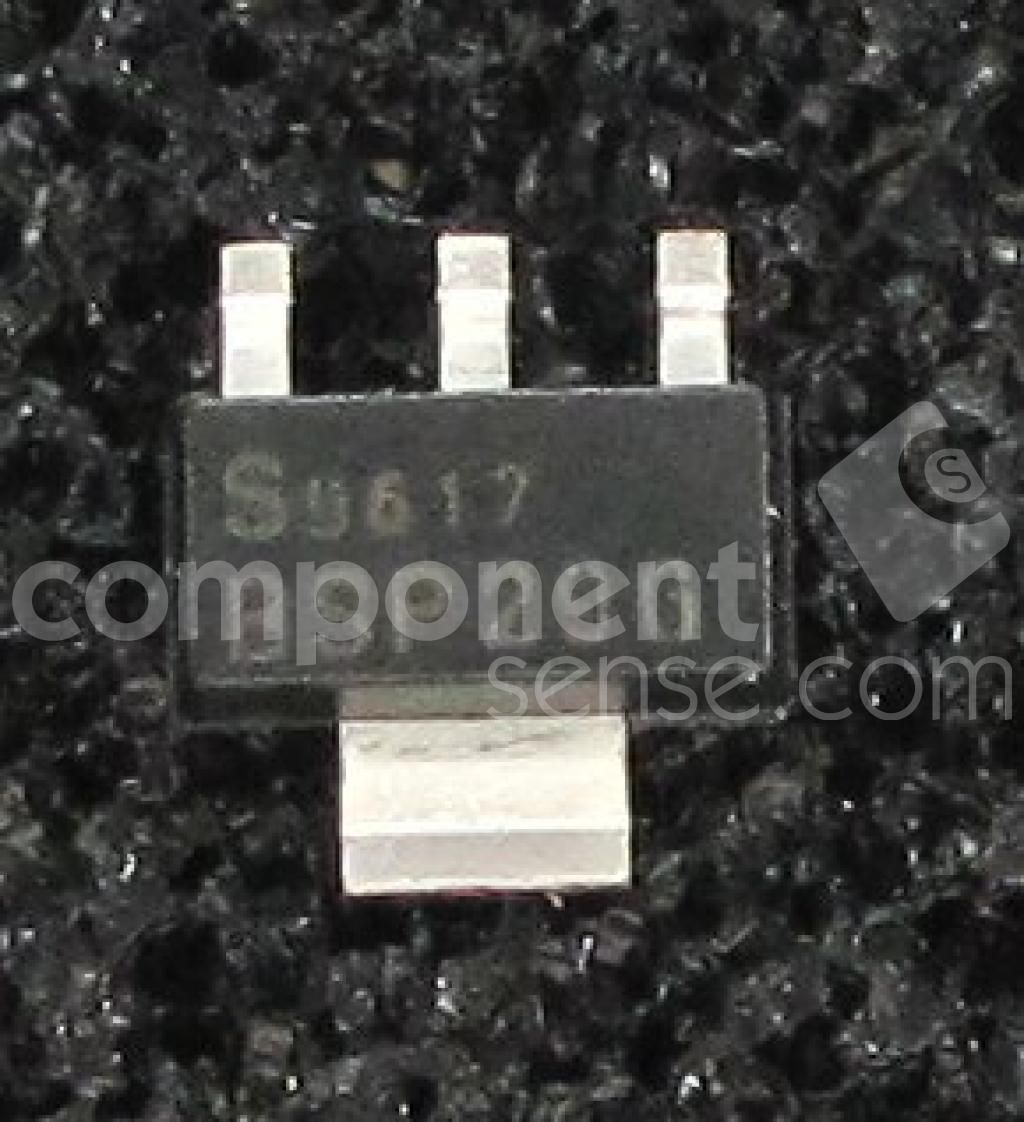

Product Images
