N-Channel MOSFET, 100V Vds, 1.8A Continuous Drain Current. Features 153mΩ Drain to Source Resistance at Vgs=10V, 230mΩ Rds On Max. Operates with a Gate to Source Voltage up to 20V and a Threshold Voltage of 1.4V. This single-element, surface-mount transistor is housed in a SOT-223 plastic package with tin plating, offering a maximum power dissipation of 1.8W. It is RoHS compliant and operates across a temperature range of -55°C to 150°C.
PackageSOT-223
MountingSurface Mount
Power1.8W
Quick Jump:
Technical Specifications
Infineon BSP372NH6327XTSA1 technical specifications.
General
| Package/Case | SOT-223 |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 1.8A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 153mR |
| Drain to Source Voltage (Vdss) | 100V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 1.7mm |
| Input Capacitance | 329pF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 100V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| On-State Resistance | 230mR |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.8W |
| Rds On Max | 230mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Threshold Voltage | 1.4V |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSP372NH6327XTSA1 Datasheet
Download the complete datasheet for Infineon BSP372NH6327XTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

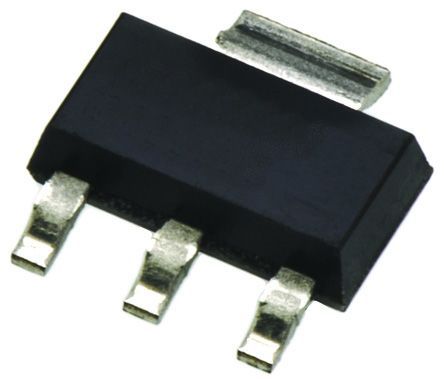

Product Images
