Technical Specifications
Infineon BSP716NH6327XTSA1 technical specifications.
General
| Package/Case | SOT-223 |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 2.3A |
| Drain to Source Voltage (Vdss) | 75V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 315pF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 75V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8W |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Rds On Max | 160mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSP716NH6327XTSA1 Datasheet
Download the complete datasheet for Infineon BSP716NH6327XTSA1 to view detailed technical specifications.
No datasheet is available for this part.

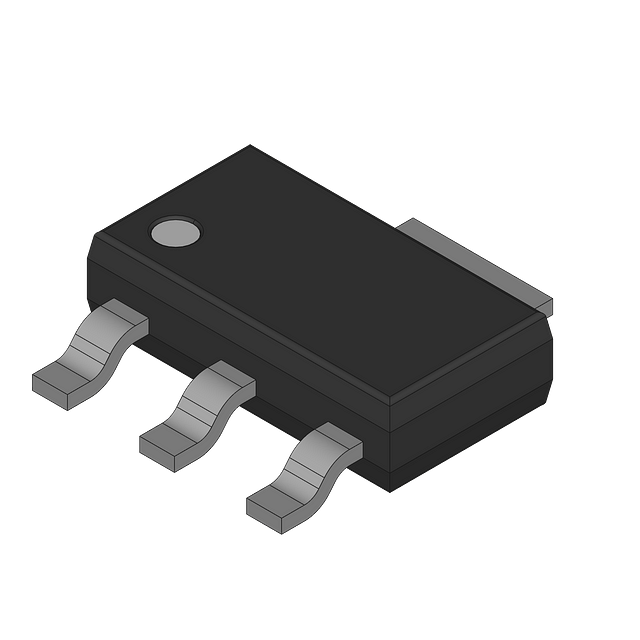

Product Images
