Peripheral driver IC featuring a single MOS output channel, capable of delivering 1.3A output current with a 52V output voltage. Operates within a 6V to 52V supply voltage range, offering a nominal input voltage of 2.2V and a low on-state resistance of 150mR. This surface mount component boasts a maximum power dissipation of 1.5W and a wide operating temperature range from -40°C to 150°C. Designed for efficient performance with turn-on and turn-off delay times of 80µs, it is RoHS compliant and halogen-free.
Current800uA
MountingSurface Mount
Power1.5W
Quick Jump:
Technical Specifications
Infineon BSP752RXUMA2 technical specifications.
General
| Halogen Free | Halogen Free |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 52V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Nominal Input Voltage | 2.2V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 150mR |
| Output Current | 1.3A |
| Output Voltage | 52V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.5W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 800uA |
| Turn-Off Delay Time | 80us |
| Turn-On Delay Time | 80us |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSP752RXUMA2 Datasheet
Download the complete datasheet for Infineon BSP752RXUMA2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

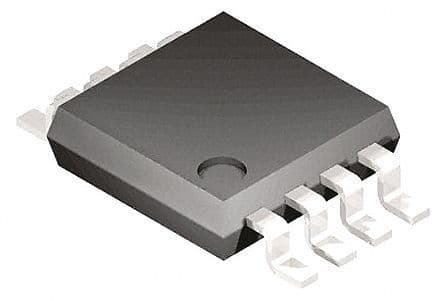

Product Images
