Technical Specifications
Infineon BSS138NH6327 technical specifications.
General
| Package/Case | TO-236-3 |
| Continuous Drain Current (ID) | 230mA |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 8.2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1mm |
| Input Capacitance | 41pF |
| Length | 2.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 360mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Rds On Max | 3.5R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIPMOS® |
| Threshold Voltage | 1V |
| Turn-Off Delay Time | 6.7ns |
| Turn-On Delay Time | 2.3ns |
| Voltage | 50V |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSS138NH6327 Datasheet
Download the complete datasheet for Infineon BSS138NH6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

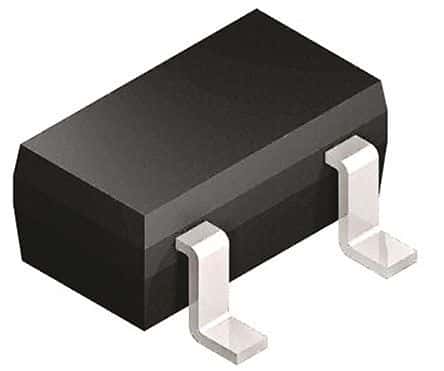

Product Images
