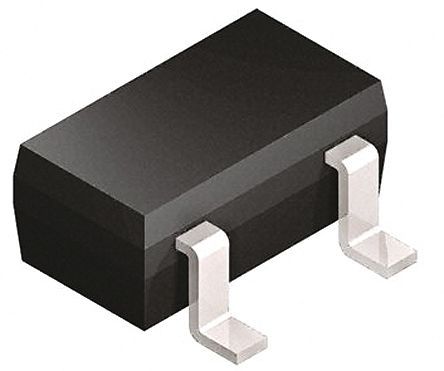

P-channel JFET, surface mount, in a SOT-23 package. Features a continuous drain current of 1.5A and a drain-to-source voltage of -30V. Offers a gate-to-source voltage of 20V and a maximum power dissipation of 500mW. Operates across a temperature range of -55°C to 150°C. Compliant with RoHS standards.
Infineon BSS315PH6327XTSA1 technical specifications.
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 1.5A |
| Drain to Source Voltage (Vdss) | -30V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 282pF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | -30V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| On-State Resistance | 150mR |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Rds On Max | 150mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Width | 1.3mm |
| RoHS | Compliant |
