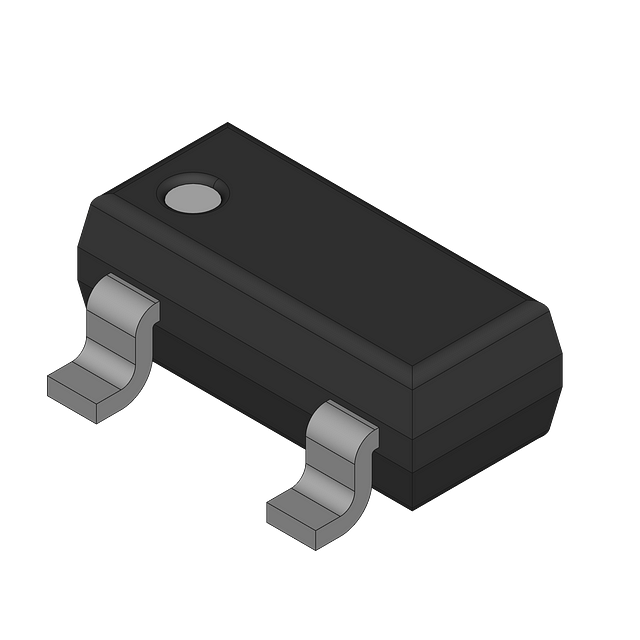

The BSS7728NH6327XTSA2 is a 60V 200mA SOT-23 surface mount junction field-effect transistor. It has a maximum operating temperature range of -55°C to 150°C and is compliant with AEC-Q101. The transistor has a maximum power dissipation of 360mW and a maximum dual supply voltage of 60V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSS7728NH6327XTSA2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 200mA |
| Drain to Source Voltage (Vdss) | 60V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 56pF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 60V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 360mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 360mW |
| Radiation Hardening | No |
| Rds On Max | 5R |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101, SIPMOS® |
| RoHS | Compliant |
Download the complete datasheet for Infineon BSS7728NH6327XTSA2 to view detailed technical specifications.
