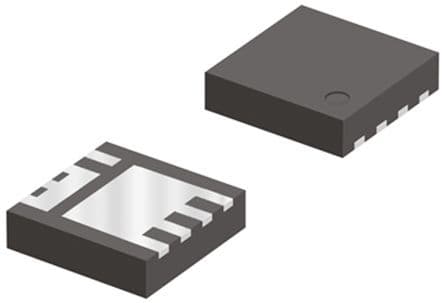

N-Channel Power MOSFET, 25V drain-source voltage, 12A continuous drain current, and 0.0081 ohm on-resistance. Features a 2V threshold voltage and 20V gate-source voltage rating. This single-element silicon metal-oxide semiconductor FET offers a maximum power dissipation of 26W and operates from -55°C to 150°C. Surface mountable in a TSDSON-8 package with tin contact plating, it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSZ060NE2LSATMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BSZ060NE2LSATMA1 technical specifications.
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 12A |
| Drain to Source Voltage (Vdss) | 25V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 25V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 26W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.1W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 2V |
| RoHS | Compliant |
Download the complete datasheet for Infineon BSZ060NE2LSATMA1 to view detailed technical specifications.
