Technical Specifications
Infineon BSZ0901NSI technical specifications.
General
| Continuous Drain Current (ID) | 40A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 2.1mR |
| Fall Time | 4.6ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 2.6nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 69W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 69W |
| Rds On Max | 2.1mR |
| Reach SVHC Compliant | Yes |
| Resistance | 0.0009R |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 27ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSZ0901NSI Datasheet
Download the complete datasheet for Infineon BSZ0901NSI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

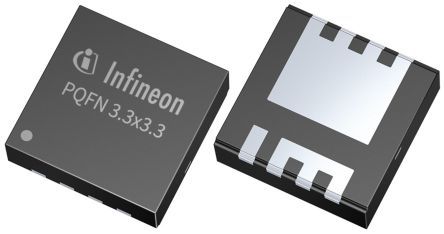

Product Images
