Technical Specifications
Infineon BSZ105N04NSGATMA1 technical specifications.
General
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 11A |
| Drain to Source Voltage (Vdss) | 40V |
| Fall Time | 2.6ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 1.3nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 40V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 35W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.1W |
| Radiation Hardening | No |
| Rds On Max | 10.5mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 9.5ns |
| Turn-On Delay Time | 7ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSZ105N04NSGATMA1 Datasheet
Download the complete datasheet for Infineon BSZ105N04NSGATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

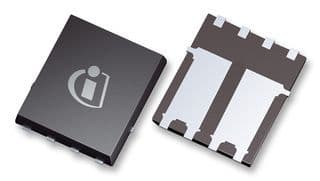

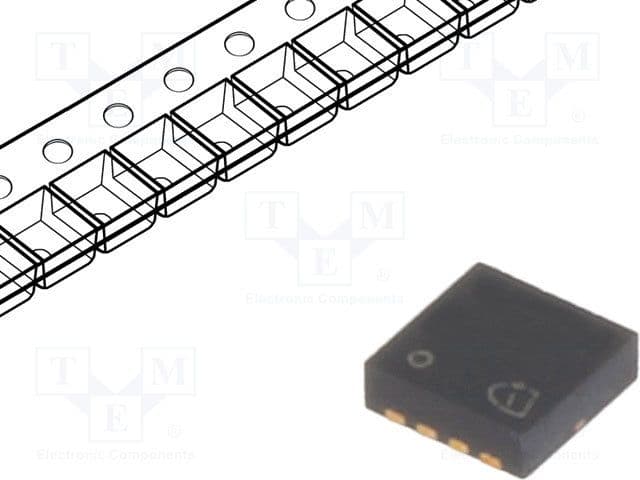

Product Images
