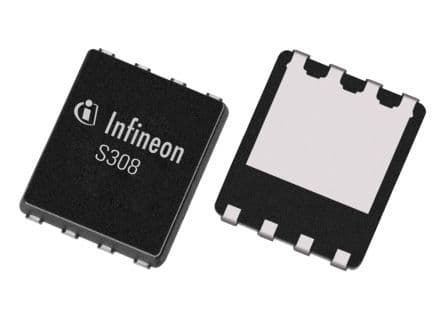

The BSZ180P03NS3EGATMA1 is a surface mount N-channel MOSFET from Infineon with a maximum continuous drain current of 39.5A and a maximum drain to source voltage of -30V. It has a maximum operating temperature range of -55°C to 150°C and a maximum power dissipation of 2.1W. The device is packaged in a small outline S-PDSO-F5 package and is RoHS compliant. It features a threshold voltage of -2.5V and a maximum on-resistance of 18mR.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSZ180P03NS3EGATMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 39.5A |
| Drain to Source Voltage (Vdss) | -30V |
| Gate to Source Voltage (Vgs) | 25V |
| Halogen Free | Halogen Free |
| Input Capacitance | 2.22nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | -30V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.1W |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Rds On Max | 18mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Threshold Voltage | -2.5V |
| RoHS | Compliant |
