Technical Specifications
Infineon BSZ180P03NS3GATMA1 technical specifications.
General
| Continuous Drain Current (ID) | 39.6A |
| Drain to Source Voltage (Vdss) | -30V |
| Gate to Source Voltage (Vgs) | 25V |
| Halogen Free | Halogen Free |
| Input Capacitance | 2.22nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | -30V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.1W |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Rds On Max | 18mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSZ180P03NS3GATMA1 Datasheet
Download the complete datasheet for Infineon BSZ180P03NS3GATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

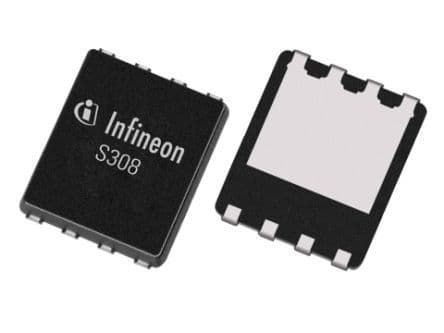

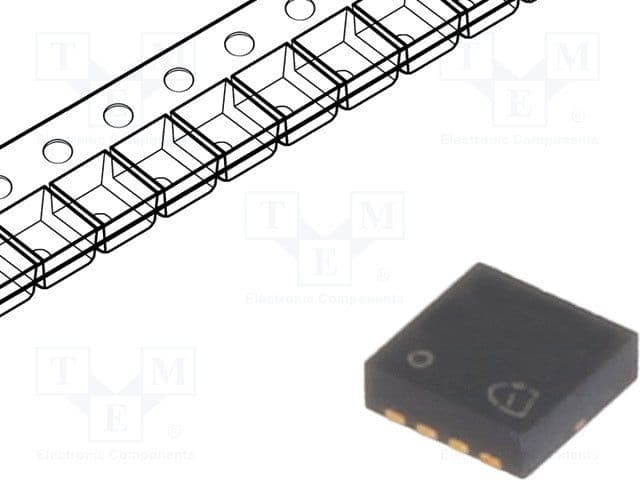

Product Images
