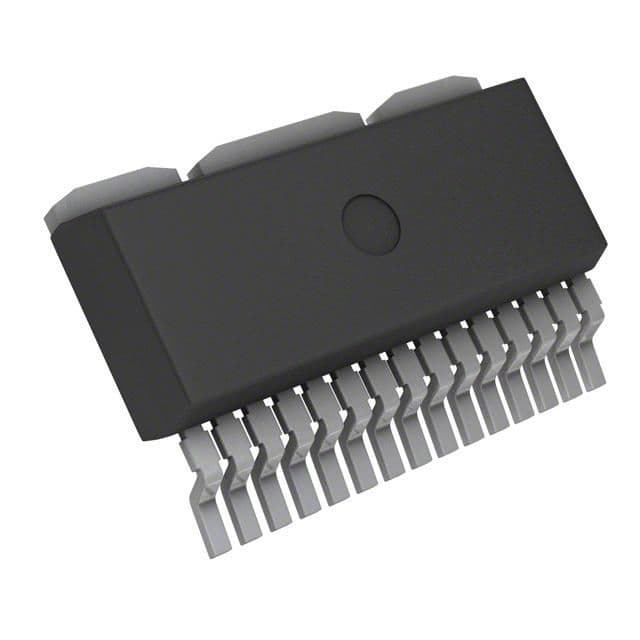

The BTM7750GP is a 42V 12A DMOS driver from Infineon, packaged in a TO-263-15 case. It features over temperature and short circuit fault protection, and is halogen free. The device operates over a temperature range of -40°C to 110°C and is RoHS compliant. It has a quiescent current of 5uA and a supply current of 3.3mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTM7750GP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263-15 |
| Current | 12A |
| Fault Protection | Over Temperature, Short Circuit |
| Halogen Free | Halogen Free |
| Height | 4.4mm |
| Interface | Logic |
| Length | 21.6mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12A |
| Max Supply Voltage | 42V |
| Min Supply Voltage | 4.5V |
| Number of Outputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 5uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TrilithIC™ |
| Supply Current | 3.3mA |
| Technology | DMOS |
| Voltage | 42V |
| Width | 9.25mm |
| RoHS | Compliant |
