PackageTO-263-7
Current2mA
Quick Jump:
Technical Specifications
Infineon BTN7930B technical specifications.
General
Package/Case
TO-263-7
Halogen Free
Halogen Free
Height
4.4mm
Interface
Parallel
Length
10mm
Max Collector Current
20A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Voltage
45V
Min Supply Voltage
5V
Motor Type
Brushless DC (BLDC)
Number of Outputs
1
Operating Supply Voltage
18V
Output Current
32A
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
7uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
NovalithIC™
Supply Current
2mA
Width
9.25mm
Compliance
RoHS
Compliant
Datasheet
Infineon BTN7930B Datasheet
Download the complete datasheet for Infineon BTN7930B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

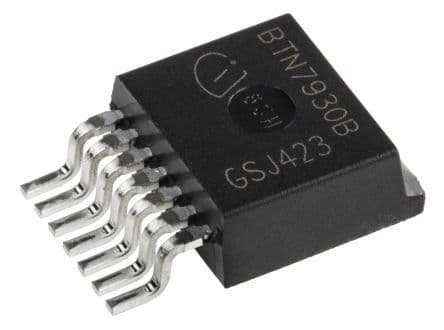

Product Images
