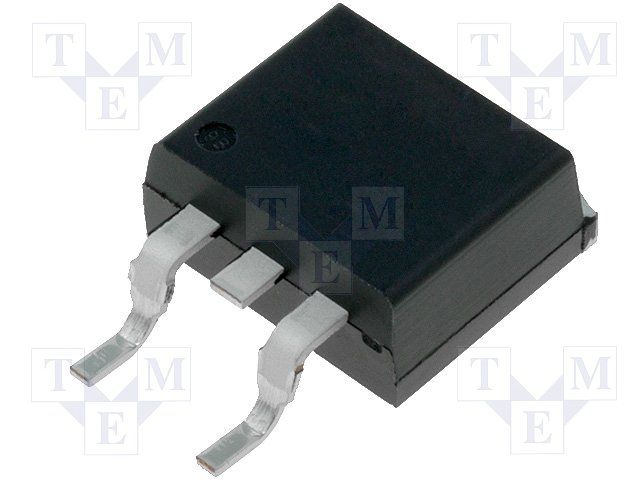

Peripheral driver IC featuring a single buffer/inverter channel with a 3.5A output current capability. This component operates with a drain-to-source voltage of 60V and a maximum supply voltage of 60V. It offers a low on-state resistance of 80mR, packaged in a TO-263-3 plastic housing. Designed for high-side switching applications, it supports a maximum power dissipation of 50W and operates across a temperature range of -40°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS117TC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263-3 |
| Current | 3.5A |
| Drain to Source Voltage (Vdss) | 60V |
| Halogen Free | Not Halogen Free |
| Height | 4.4mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Dual Supply Voltage | 60V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 50W |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 80mR |
| Output Current per Channel | 3.5A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rds On Max | 100mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HITFET® |
| Voltage | 73V |
| Width | 9.25mm |
| RoHS | Compliant |
