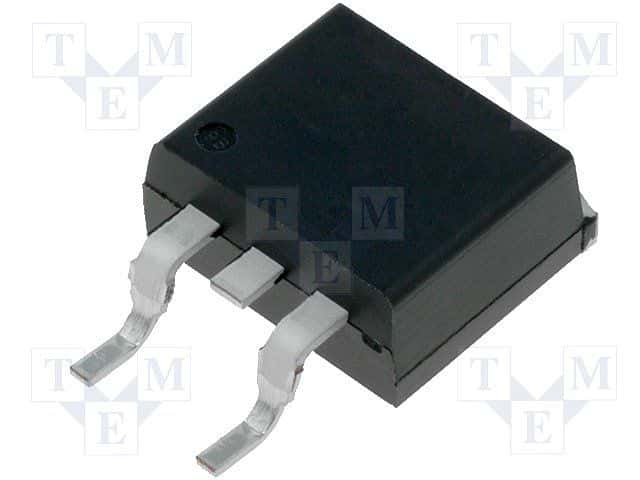

Peripheral driver IC featuring a single-channel, low-side output configuration. This surface-mount component offers a 60V drain-to-source voltage and a maximum output current of 3.5A. It includes over-voltage and over-temperature fault protection. The driver operates within a -40°C to 150°C temperature range and has a nominal input voltage of 10V. The TO-263-3 package provides a 100mR on-state resistance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS117TCBUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263-3 |
| Drain to Source Voltage (Vdss) | 60V |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Not Halogen Free |
| Interface | On/Off |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 60V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Mount | Surface Mount |
| Nominal Input Voltage | 10V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 100mR |
| Output Configuration | Low Side |
| Output Current | 3.5A |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Power Dissipation | 50W |
| RoHS Compliant | Yes |
| Series | HITFET® |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS117TCBUMA1 to view detailed technical specifications.
