Infineon
BTS3205N
Buffer/Inverter Based Peripheral Driver, 1 Driver, 0.55A, PDSO3, GREEN, PLASTIC, SOT-223, 4 PIN
PackageTO-261-4
Voltage42V
Current350mA
Quick Jump:
Technical Specifications
Infineon BTS3205N technical specifications.
General
Package/Case
TO-261-4
Current
350mA
Drain to Source Voltage (Vdss)
42V
Halogen Free
Not Halogen Free
Max Dual Supply Voltage
42V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
900mA
Max Power Dissipation
780mW
Number of Channels
1
Number of Outputs
1
On-State Resistance
700mR
Output Current per Channel
350mA
Package Quantity
1
Packaging
Tape and Reel
Rds On Max
700mR
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
HITFET®
Voltage
42V
Compliance
RoHS
Compliant
Datasheet
Infineon BTS3205N Datasheet
Download the complete datasheet for Infineon BTS3205N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

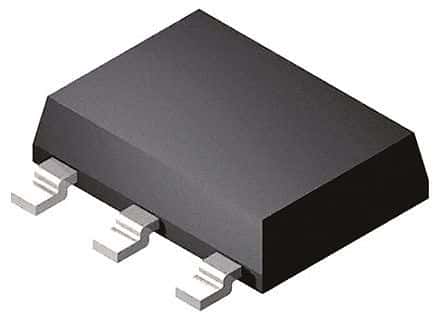

Product Images
