The BTS409L1 is a high side driver from Infineon with a maximum output current of 1.8A and a maximum supply voltage of 34V. It operates within a temperature range of -40°C to 150°C and is available in a TO-220-5 package. The device is not RoHS compliant and is packaged in tape and reel quantities of 500. It features fault protection against over voltage and over temperature conditions.
PackageTO-220-5
Quick Jump:
Technical Specifications
Infineon BTS409L1 technical specifications.
General
| Package/Case | TO-220-5 |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Not Halogen Free |
| Interface | On/Off |
| Length | 15.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.8A |
| Max Supply Voltage | 34V |
| Min Supply Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Series | PROFET® |
| Thickness | 4.4mm |
| Width | 9.9mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Infineon BTS409L1 Datasheet
Download the complete datasheet for Infineon BTS409L1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

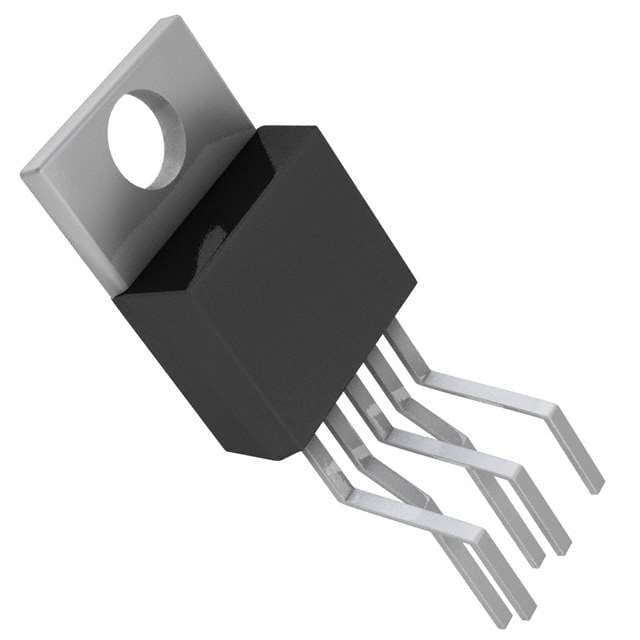

Product Images
