Infineon
BTS4130QGA
Buffer/Inverter Based Peripheral Driver, 4 Driver, 1.1A, CMOS, PDSO20, GREEN, PLASTIC, SOP-20
PackageSOIC
Voltage20V
Current1.8A
Quick Jump:
Technical Specifications
Infineon BTS4130QGA technical specifications.
General
Package/Case
SOIC
Current
1.8A
Halogen Free
Halogen Free
Height
3.25mm
Length
15.9mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Power Dissipation
1.4W
Max Supply Voltage
20V
Min Supply Voltage
5.5V
Number of Channels
4
Number of Outputs
4
On-State Resistance
130mR
Output Current per Channel
1.8A
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
3.3mA
Voltage
20V
Width
11mm
Compliance
RoHS
Compliant
Datasheet
Infineon BTS4130QGA Datasheet
Download the complete datasheet for Infineon BTS4130QGA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

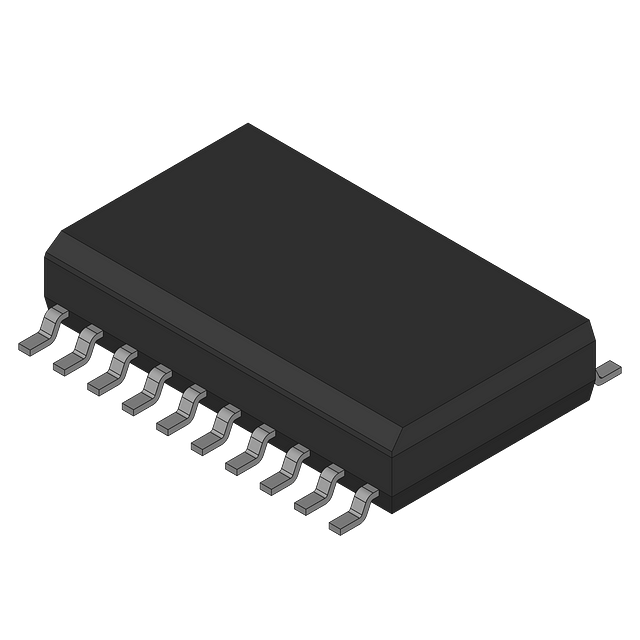

Product Images
