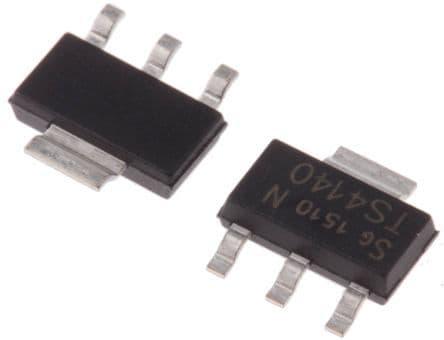

Single-channel peripheral driver IC featuring a buffer/inverter configuration. This surface-mount component, housed in a SOT-223 package, operates with a maximum supply voltage of 60V and delivers up to 200mA output current per channel. It offers a low on-state resistance of 1 Ohm and a maximum power dissipation of 1.7W, with an operating temperature range from -40°C to 150°C. The device is RoHS compliant and packaged on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS4140N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-223 |
| Current | 200mA |
| Halogen Free | Not Halogen Free |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 900mA |
| Max Power Dissipation | 1.7W |
| Max Supply Voltage | 60V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 1R |
| Output Current | 200mA |
| Output Current per Channel | 200mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.7W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage | 60V |
| Width | 3.5mm |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS4140N to view detailed technical specifications.
