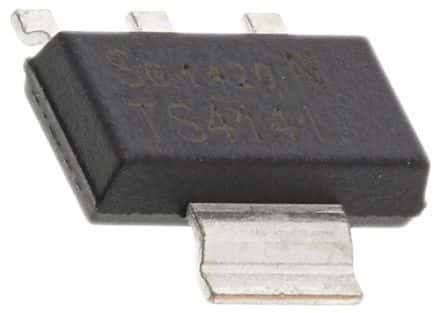

Single-channel peripheral driver IC featuring a MOS output for efficient power control. Operates with a supply voltage range of 12V to 45V, delivering up to 1.4A maximum output current. Boasts a low on-state resistance of 150mR and a maximum power dissipation of 1.4W. Packaged in a compact TO-261-4 (SOT-223) surface-mount package, suitable for automated assembly. Designed for operation across a wide temperature range from -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS4141N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BTS4141N technical specifications.
| Package/Case | TO-261-4 |
| Current | 700mA |
| Halogen Free | Not Halogen Free |
| Height | 1.6mm |
| Lead Free | Contains Lead |
| Length | 6.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.4A |
| Max Power Dissipation | 1.4W |
| Max Supply Voltage | 45V |
| Min Supply Voltage | 12V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 150mR |
| Output Current | 700mA |
| Output Current per Channel | 700mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.4W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | miniPROFET® |
| Voltage | 45V |
| Width | 3.5mm |
| RoHS | Compliant |
