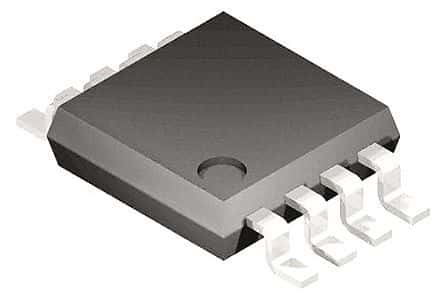

High-side driver IC with 400mA output current, featuring over-voltage and over-temperature fault protection. This single-channel peripheral driver operates from a 34V supply, with a nominal input voltage of 34V and a maximum power dissipation of 800mW. Designed for surface mounting in a SOIC package, it offers halogen-free and lead-free construction, operating across a temperature range of -40°C to 150°C. The interface is controlled via an on/off signal.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS4300SGAXUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 400mA |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 34V |
| Mount | Surface Mount |
| Nominal Input Voltage | 34V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Current | 400mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 800mW |
| RoHS Compliant | Yes |
| Supply Current | 1.3mA |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS4300SGAXUMA1 to view detailed technical specifications.
