Single-channel, high-side peripheral driver IC featuring 80V drain-to-source voltage and 9A output current. This TO-220-5 packaged component offers over-voltage and over-temperature fault protection, with a maximum operating temperature of 150°C. It operates with a 500mV minimum input voltage and a 6V maximum input voltage, supporting an 11A load current and 42V maximum supply voltage. Designed for through-hole mounting, this RoHS compliant device has a power dissipation of 125W.
PackageTO-220-5
Current1.1mA
MountingThrough Hole
Power125W
Quick Jump:
Technical Specifications
Infineon BTS432E2 technical specifications.
General
| Package/Case | TO-220-5 |
| Drain to Source Voltage (Vdss) | 80V |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Not Halogen Free |
| Height | 9.25mm |
| Interface | On/Off |
| Lead Free | Contains Lead |
| Length | 9.9mm |
| Load Current | 11A |
| Max Input Voltage | 6V |
| Min Input Voltage | 500mV |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 9A |
| Max Power Dissipation | 125W |
| Max Supply Voltage | 42V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Current | 9A |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Power Dissipation | 125W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 1.1mA |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BTS432E2 Datasheet
Download the complete datasheet for Infineon BTS432E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

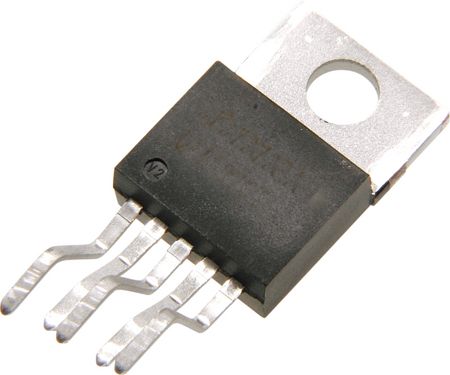

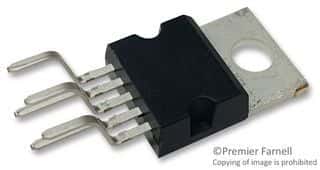

Product Images
