High-side power switch IC featuring a single buffer/inverter driver. Delivers 21A load current with a low 15mR on-state resistance. Operates from a 4.5V to 42V supply voltage, capable of handling up to 63V drain-to-source voltage. Maximum output current reaches 95A, with a maximum power dissipation of 167W. Packaged in a TO-220-5 configuration, this RoHS compliant component operates across a wide temperature range of -40°C to 150°C.
PackageTO-220-5
Quick Jump:
Technical Specifications
Infineon BTS442E2 technical specifications.
General
| Package/Case | TO-220-5 |
| Drain to Source Voltage (Vdss) | 63V |
| Halogen Free | Not Halogen Free |
| Length | 15.6mm |
| Load Current | 21A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 95A |
| Max Power Dissipation | 167W |
| Max Supply Current | 1.1mA |
| Max Supply Voltage | 42V |
| Min Supply Voltage | 4.5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 15mR |
| Output Current | 17A |
| Output Current per Channel | 21A |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Thickness | 4.4mm |
| Width | 9.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BTS442E2 Datasheet
Download the complete datasheet for Infineon BTS442E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

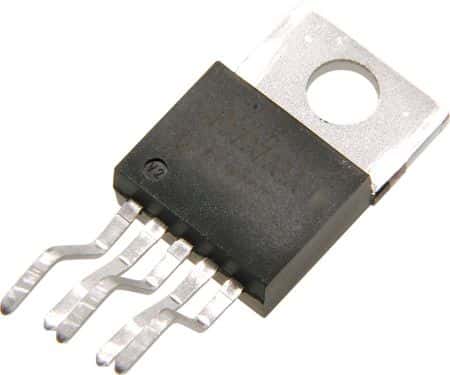

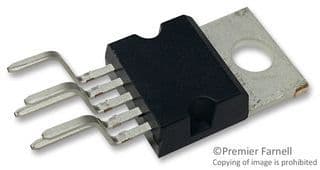

Product Images
