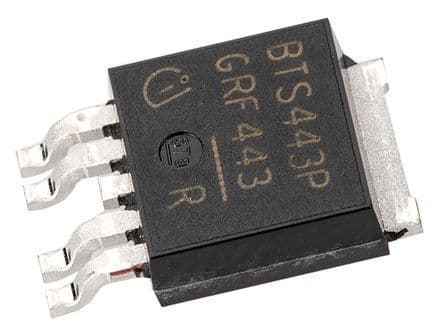

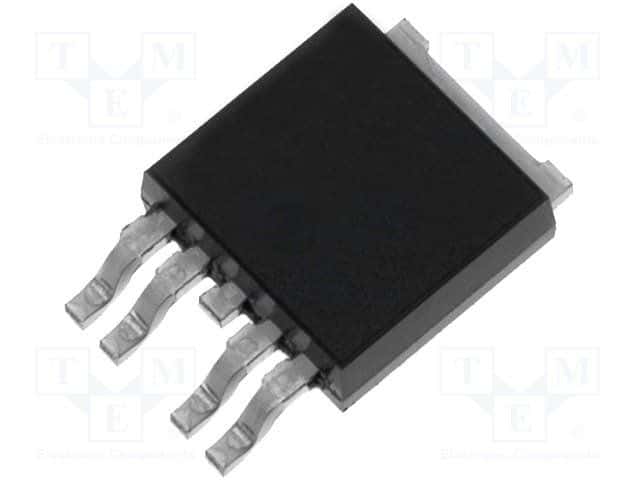

High-side power switch IC featuring a single buffer/inverter-based driver. This surface-mount component operates with a supply voltage range of 5V to 36V, supporting a maximum input voltage of 36V. It delivers a continuous output current of 25A per channel, with a peak output current capability of 65A. The device boasts a low on-state resistance of 13mR and a maximum power dissipation of 42W, operating across a temperature range of -40°C to 150°C. Packaged in a TO-252-5 (DPAK-5) case, it is RoHS compliant and designed for tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS443P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-252-5 |
| Current | 25A |
| Halogen Free | Halogen Free |
| Height | 2.3mm |
| Lead Free | Contains Lead |
| Length | 6.5mm |
| Max Input Voltage | 36V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 65A |
| Max Power Dissipation | 42W |
| Max Supply Current | 5uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 13mR |
| Output Current | 25A |
| Output Current per Channel | 25A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Termination | SMD/SMT |
| Voltage | 36V |
| Width | 6.22mm |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS443P to view detailed technical specifications.
