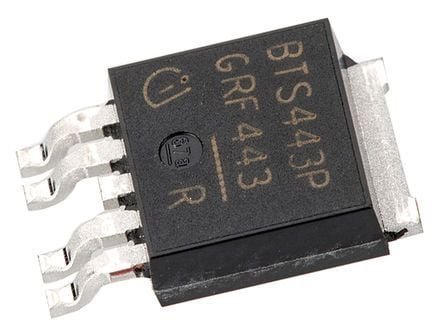

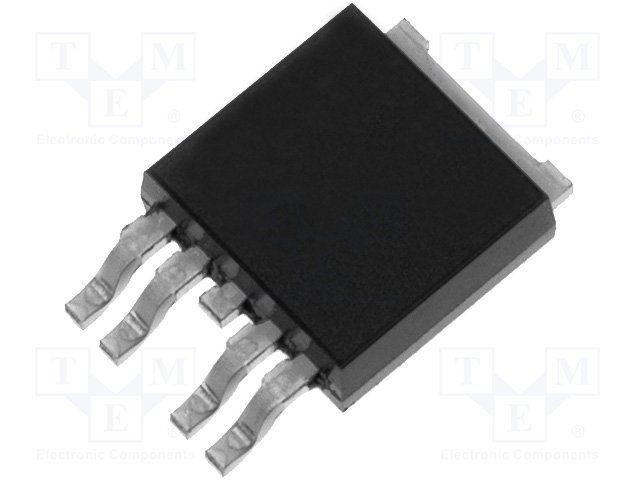

Single-channel buffer/inverter peripheral driver with a 25A load current capability. Features a 36V maximum supply voltage and a 43V maximum output voltage. Operates within a -40°C to 150°C temperature range, with a low 16mR on-resistance. Packaged in a TO-252 (DPAK-5) SMD/SMT package, this RoHS compliant component offers 42W power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS443PAUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-252 |
| Current | 25A |
| Halogen Free | Halogen Free |
| Height | 2.3mm |
| Length | 6.5mm |
| Load Current | 25A |
| Max Input Voltage | 36V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 65A |
| Max Power Dissipation | 42W |
| Max Supply Current | 5uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 25A |
| Output Current per Channel | 25A |
| Output Voltage | 43V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 42W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 16mR |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 2.3mm |
| Turn-Off Delay Time | 410us |
| Turn-On Delay Time | 410us |
| Voltage | 36V |
| Width | 6.22mm |
| RoHS | Compliant |
