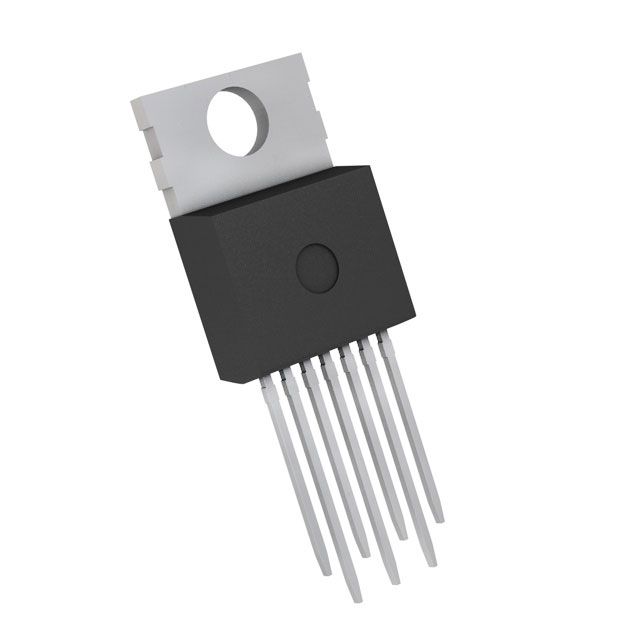

High-side peripheral driver IC featuring a single channel with a 9.5A maximum output current and 7mR on-state resistance. This device operates with a supply voltage range of 5.5V to 38V, accepting input voltages from 5.5V to 30V. Integrated fault protection includes over-voltage and over-temperature safeguards. Packaged in a TO-220-7 configuration, this RoHS compliant component offers a wide operating temperature range from -40°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS500801TMBAKSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-7 |
| Current | 9.5A |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Height | 4.4mm |
| Interface | On/Off |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Input Voltage | 30V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 9.5A |
| Max Supply Current | 1.4mA |
| Max Supply Voltage | 38V |
| Min Supply Voltage | 5.5V |
| Nominal Input Voltage | 38V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 7mR |
| Operating Supply Voltage | 30V |
| Output Configuration | High Side |
| Output Current | 9.5A |
| Output Current per Channel | 9.5A |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Dissipation | 81W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 1.4mA |
| Voltage | 38V |
| Width | 15.65mm |
| RoHS | Compliant |
