The BTS5120-2EKA is a dual-channel PROFET IC from Infineon with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum output current of 12A and a maximum power dissipation of 1.8W. The device is available in a SOIC-14 package and is compliant with RoHS regulations. It is not compliant with Reach SVHC regulations. The BTS5120-2EKA is suitable for use in applications where a high current and low on-state resistance are required.
PackageSOIC
Current5mA
Quick Jump:
Technical Specifications
Infineon BTS5120-2EKA technical specifications.
General
| Package/Case | SOIC |
| Halogen Free | Halogen Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12A |
| Max Power Dissipation | 1.8W |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 5V |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| On-State Resistance | 220mR |
| Output Current per Channel | 2A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 5mA |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BTS5120-2EKA Datasheet
Download the complete datasheet for Infineon BTS5120-2EKA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

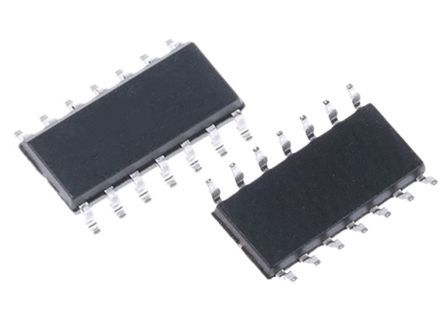

Product Images
