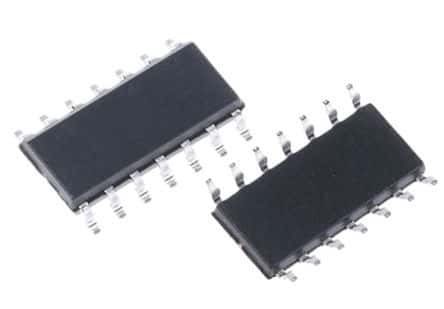

The BTS51202EKAXUMA1 is a dual channel high side driver from Infineon with a maximum operating temperature of -40°C to 150°C. It features a maximum output current of 2A and a maximum supply voltage of 28V. The device is packaged in a SOIC package and is lead free and halogen free. It is also RoHS compliant and has a power dissipation of 1.8W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS51202EKAXUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 1.8W |
| Max Supply Voltage | 28V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Output Configuration | High Side |
| Output Current | 2.5A |
| Packaging | Tape and Reel |
| Power Dissipation | 1.8W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 5mA |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS51202EKAXUMA1 to view detailed technical specifications.
