Infineon
BTS5180-2EKA
Telephone Relay Driver, 2 Driver, 1.5A, MOS, PDSO14, 4 MM, GREEN, PLASTIC, MS-012BB, DSO-14
PackageSOIC
Current5mA
Quick Jump:
Technical Specifications
Infineon BTS5180-2EKA technical specifications.
General
Package/Case
SOIC
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Interface
On/Off
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
1.6W
Max Supply Voltage
28V
Min Supply Voltage
5V
Number of Channels
2
Number of Outputs
2
On-State Resistance
330mR
Output Configuration
High Side
Output Current per Channel
1.5A
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PROFET®
Supply Current
5mA
Compliance
RoHS
Compliant
Datasheet
Infineon BTS5180-2EKA Datasheet
Download the complete datasheet for Infineon BTS5180-2EKA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

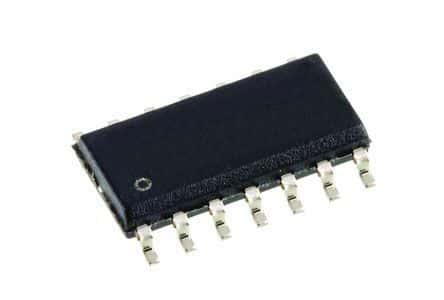

Product Images
