Infineon
BTS621L1E3128A
Buffer/Inverter Based Peripheral Driver, 2 Driver, 14A, MOS, PSFM6, TO-220AB, 7 PIN

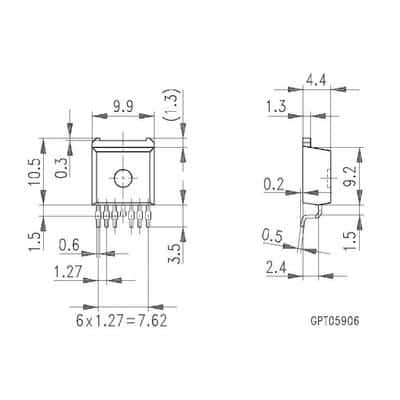

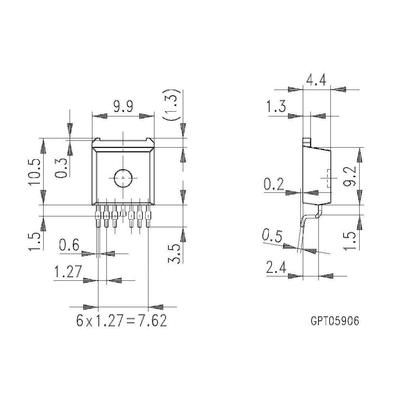

PackageTO-263-8
Current4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BTS621L1E3128A technical specifications.
General
Package/Case
TO-263-8
Fault Protection
Over Voltage, Over Temperature
Interface
On/Off
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Max Power Dissipation
75W
Mount
Surface Mount
Number of Channels
2
Number of Outputs
2
Operating Supply Voltage
-34V
Output Configuration
High Side
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
PROFET®
Supply Current
4mA
Compliance
RoHS
Compliant
Datasheet
Infineon BTS621L1E3128A Datasheet
Download the complete datasheet for Infineon BTS621L1E3128A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

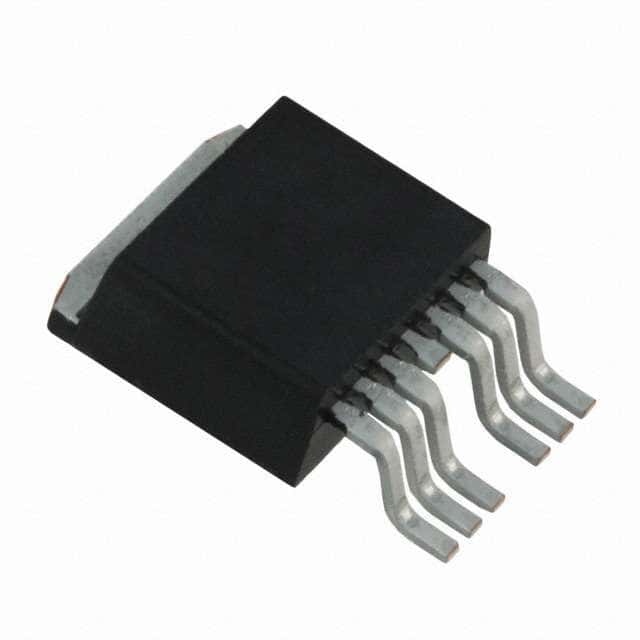

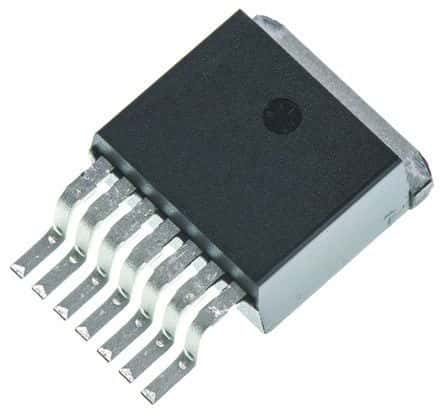

Product Images
