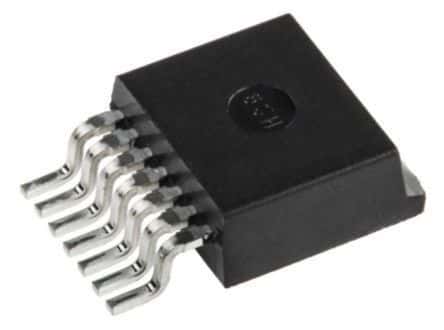

The BTS640S2GATMA1 is a high-side driver from Infineon, featuring a maximum supply voltage of 34V and a maximum output current of 11.4A. It is packaged in a TO-263-7 surface mount package and operates over a temperature range of -40°C to 150°C. The device is RoHS compliant and contains lead, with a power dissipation of 85W. It is suitable for use in fault protection applications, including over voltage and over temperature protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS640S2GATMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BTS640S2GATMA1 technical specifications.
| Package/Case | TO-263-7 |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Interface | On/Off |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 11.4A |
| Max Supply Voltage | 34V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Current | 4A |
| Packaging | Tape and Reel |
| Power Dissipation | 85W |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 1.2mA |
| RoHS | Compliant |
