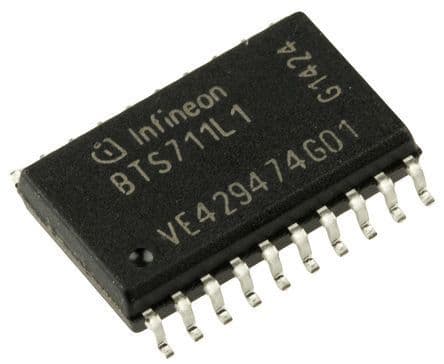

The BTS711L1 is a 4-channel high-side driver from Infineon, designed for surface mount applications. It operates within a temperature range of -40°C to 150°C and can handle a maximum supply voltage of 35V. The device has a maximum power dissipation of 3.6W and a nominal supply current of 8mA. It is compliant with RoHS regulations and is available in a tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS711L1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BTS711L1 technical specifications.
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3.6W |
| Max Supply Voltage | 35V |
| Mount | Surface Mount |
| Nominal Supply Current | 8mA |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Output Current | 1.7A |
| Packaging | Tape and Reel |
| Power Dissipation | 3.6W |
| RoHS Compliant | Yes |
| Supply Current | 8mA |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS711L1 to view detailed technical specifications.
