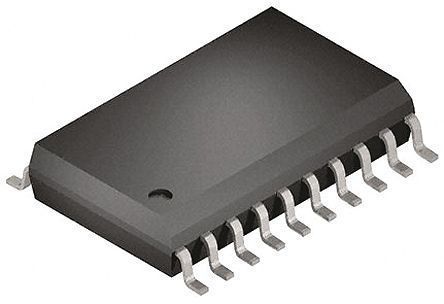

The BTS716GB is a 4-channel driver IC from Infineon, packaged in a HSOP SOP20 package. It operates over a temperature range of -40°C to 150°C and is compliant with RoHS regulations. The device can handle a maximum supply voltage of 40V and a maximum output current of 6.5A per channel. The on-state resistance is 110mR, and the supply current is 1.9mA. The IC is available on a tape and reel in quantities of 1.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS716GB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Current | 2.6A |
| Halogen Free | Halogen Free |
| Height | 3.25mm |
| Lead Free | Contains Lead |
| Length | 15.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6.5A |
| Max Power Dissipation | 3.6W |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 5.5V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| On-State Resistance | 110mR |
| Output Current per Channel | 2.6A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.9mA |
| Voltage | 40V |
| Width | 11mm |
| RoHS | Compliant |
