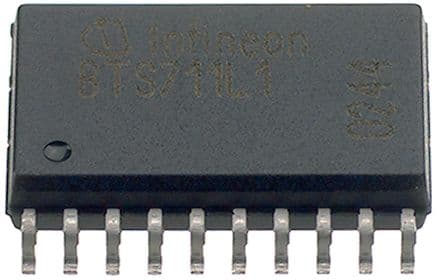

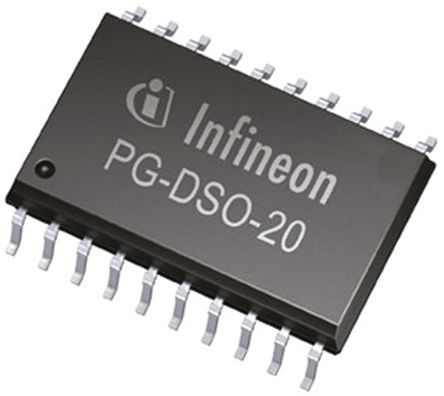

2-channel peripheral driver IC featuring a 27mR on-state resistance and a maximum continuous drain current of 5.5A per channel. This integrated circuit operates with a supply voltage range of 5V to 34V, supporting a dual supply voltage of 34V. It offers a maximum output current of 24A and a maximum power dissipation of 3.8W, with an operating temperature range from -40°C to 150°C. The component is housed in a 20-pin SOIC package, suitable for surface-mount technology (SMT) and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS740S2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Continuous Drain Current (ID) | 5.5A |
| Drain to Source Voltage (Vdss) | 34V |
| Dual Supply Voltage | 34V |
| Halogen Free | Halogen Free |
| Load Current | 5.5A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 24A |
| Max Power Dissipation | 3.8W |
| Max Supply Voltage | 34V |
| Min Supply Voltage | 5V |
| Number of Channels | 2 |
| Number of Outputs | 4 |
| On-State Resistance | 27mR |
| Operating Supply Voltage | 43V |
| Output Current | 4.9A |
| Output Current per Channel | 5.5A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.8W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 2.4mA |
| Termination | SMD/SMT |
| RoHS | Compliant |
