N-channel IGBT power module featuring 1.2kV Collector-Emitter Breakdown Voltage and 200A Continuous Collector Current, with a maximum of 320A. This module offers 1.75V Collector-Emitter Saturation Voltage and 1.1kW Power Dissipation, operating between -40°C and 150°C. It includes 14nF Input Capacitance and is designed for chassis or panel mounting with screw terminals. The module is RoHS compliant and packaged in bulk.
PackageModule
MountingChassis Mount, Panel, Screw
PolarityNPN
Power1.1kW
Quick Jump:
Technical Specifications
Infineon FF200R12KT4HOSA1 technical specifications.
General
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Saturation Voltage | 1.75V |
| Collector Emitter Voltage (VCEO) | 1.2kV |
| Collector-emitter Voltage-Max | 2.15V |
| Continuous Collector Current | 200A |
| Halogen Free | Not Halogen Free |
| Height | 30.9mm |
| Input | Standard |
| Input Capacitance | 14nF |
| Lead Free | Lead Free |
| Length | 106.4mm |
| Max Collector Current | 320A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.1kW |
| Mount | Chassis Mount, Panel, Screw |
| NTC Thermistor | No |
| Package Quantity | 10 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 1.1kW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C |
| Turn-Off Delay Time | 450ns |
| Turn-On Delay Time | 160ns |
| Width | 61.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon FF200R12KT4HOSA1 Datasheet
Download the complete datasheet for Infineon FF200R12KT4HOSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

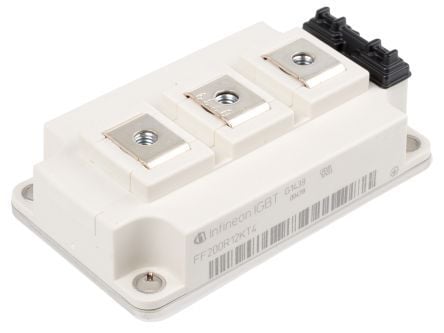

Product Images
