N-channel Insulated Gate Bipolar Transistor (IGBT) module featuring a 1200V Collector Emitter Breakdown Voltage and a 450A maximum continuous collector current. This device offers a 2.1V Collector Emitter Saturation Voltage and operates within a temperature range of -40°C to 150°C. With a 1.6kW maximum power dissipation, it is designed for chassis mount applications. The IGBT module includes standard input with 19nF input capacitance and exhibits turn-on delay time of 160ns and turn-off delay time of 450ns.
PackageModule
MountingChassis Mount, Screw
PolarityNPN
Power1.6kW
Quick Jump:
Technical Specifications
Infineon FF300R12KT4HOSA1 technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
1.2kV
Collector Emitter Saturation Voltage
2.1V
Collector Emitter Voltage (VCEO)
1.75V
Collector-emitter Voltage-Max
2.15V
Continuous Collector Current
300A
Halogen Free
Not Halogen Free
Input
Standard
Input Capacitance
19nF
Lead Free
Lead Free
Max Collector Current
450A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.6kW
Mount
Chassis Mount, Screw
NTC Thermistor
No
Package Quantity
10
Polarity
NPN
Power Dissipation
1.6kW
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C
Turn-Off Delay Time
450ns
Turn-On Delay Time
160ns
Compliance
RoHS
Compliant
Datasheet
Infineon FF300R12KT4HOSA1 Datasheet
Download the complete datasheet for Infineon FF300R12KT4HOSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

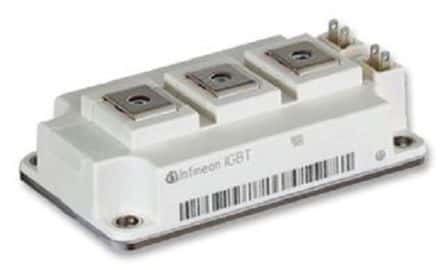

Product Images
