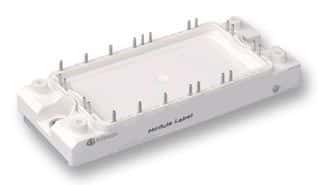

The FP35R12KT4 is an insulated gate bipolar transistor from Infineon, featuring a collector emitter breakdown voltage of 1.2kV and a maximum collector current of 35A. It is designed for operation in temperatures ranging from -40°C to 150°C and has a maximum power dissipation of 210W. The device is mounted via screw and is compliant with RoHS regulations, but not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon FP35R12KT4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Saturation Voltage | 1.85V |
| Collector Emitter Voltage (VCEO) | 1.2kV |
| Max Collector Current | 35A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 210W |
| Mount | Screw |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Infineon FP35R12KT4 to view detailed technical specifications.
