PackageModule
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Infineon FP35R12KT4B15BOSA1 technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
1.2kV
Collector Emitter Voltage (VCEO)
1.85V
Collector-emitter Voltage-Max
2.15V
Input
Standard
Input Capacitance
2nF
Max Collector Current
35A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
210W
Mount
Chassis Mount, Screw
NTC Thermistor
Yes
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Infineon FP35R12KT4B15BOSA1 Datasheet
Download the complete datasheet for Infineon FP35R12KT4B15BOSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

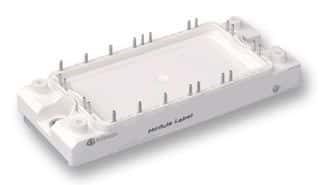

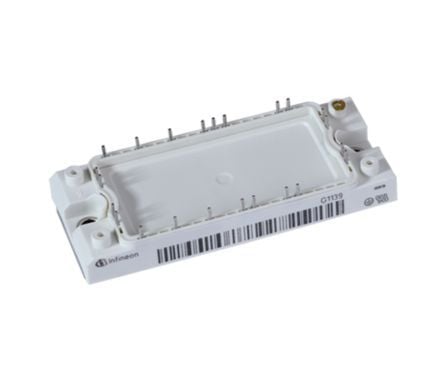

Product Images
