PackageModule
MountingPCB, Screw
Quick Jump:
Technical Specifications
Infineon FS150R12PT4 technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
1.2kV
Collector Emitter Saturation Voltage
1.75V
Collector Emitter Voltage (VCEO)
1.2kV
Height
17mm
Length
130mm
Max Collector Current
200A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
680W
Mount
PCB, Screw
Package Quantity
6
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
70.6mm
Compliance
RoHS
Compliant
Datasheet
Infineon FS150R12PT4 Datasheet
Download the complete datasheet for Infineon FS150R12PT4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

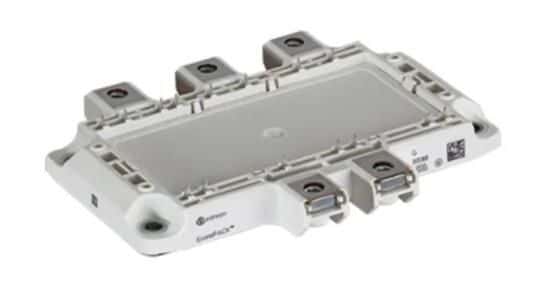

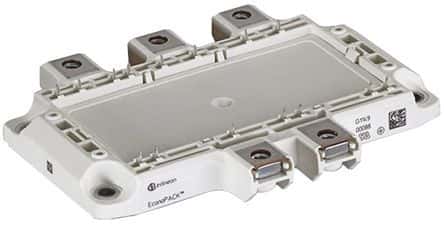

Product Images
